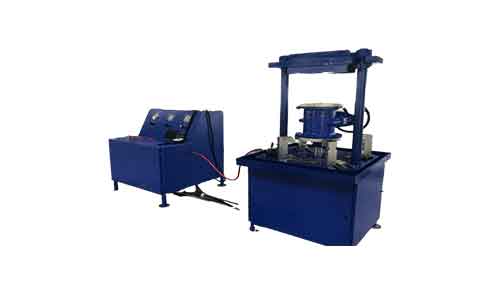

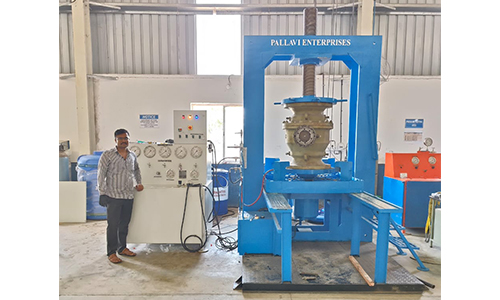

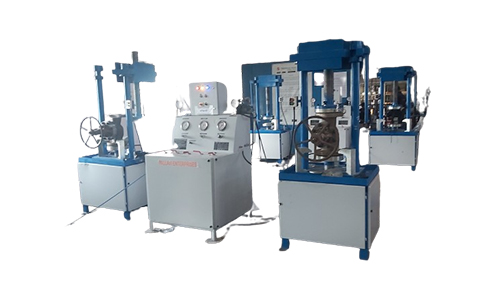

Non-Compressive Valve Testing Machine

Technical Specifications

• Universal valve testing machine
• Single or double station
• Size range ½” to 6“ & 8” to 12” & 16” to 24”
• Pressure range 0- 200 bar hydro & 0-7 bar air
• Structure MS powdercoated painted
• Tank SS
• Testing medium: water air
• Analogue Gauges or digital gauges available
• Independent working stations
• Non- Compressive type clamping from bottom for seat test
• Compressive type clamping for body test
• Lead screw arrangement for height adjustment
• All types of valves can be tested on this machine
