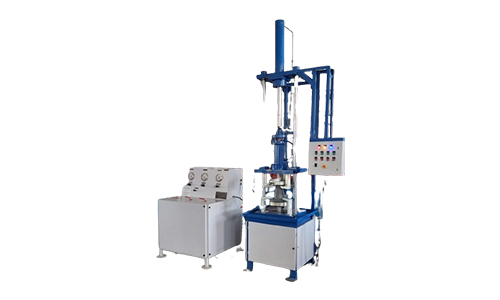

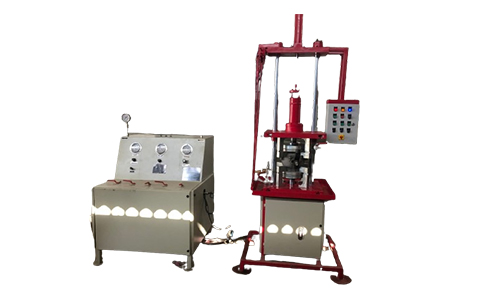

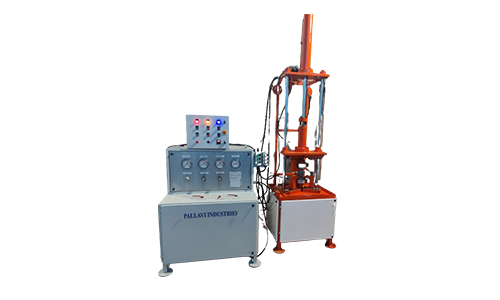

Non-Compressive Valve Testing Machine On Both Ends

Technical Specifications

• Single or double station
• Size range ½” to 6“ & 8” to 12”
• Pressure range 0- 200 bar hydro & 0-7 bar air
• Structure MS powdercoated painted
• Tank SS
• Testing medium: water air
• Analogue Gauges or digital gauges available
• Independent working stations
• Non - Compressive type clamping from both ends
• Best suited for 2 piece , 3 piece ball valves
• Zero load on valve body
